How to configure the boxes with the cluster repository objects

For each end-user or end-customer, Kappa Data will create a new Cluster. You do not have the rights to create or delete cluster. In case a cluster has to be renamed, added or deleted, please contact Kappa Data Support: support@kappadata.eu

ccFLEX Preconfigured settings and services#

In ccFLEX we introduce new features like monitoring, eventing and a new way of authentication. There are some configuration changes that have/had to happen to the default firewall configuration.

In every cluster we added a “Cluster Repository”. The cluster repository contains the correct settings for the ccFLEX offering.

You can import these settings directly from the cluster repository to the box.

Important! If you have other external authentication services configured (like MSAD), you need to COPY the LDAP settings from Kappa Data in the configuration. Otherwise you will overwrite the settings.

Configuration of the monitoring service (SNMP)#

Right click on Infrastructure Services —> SNMP —> Copy from cluster repository. Remember to lock the service (Right-click, lock) otherwise the “Copy From Cluster Repository” will not be available.

Select ccSNMP and click “OK”

Configuration of the Eventing service#

Click right —> Copy from Cluster Repository

Select ccEvent and click “OK”

Configuration of the Host Firewall rules#

Click right on “Host Firewall Rules” —> Copy From Cluster Repository

Select “ccHostFW” and click OK

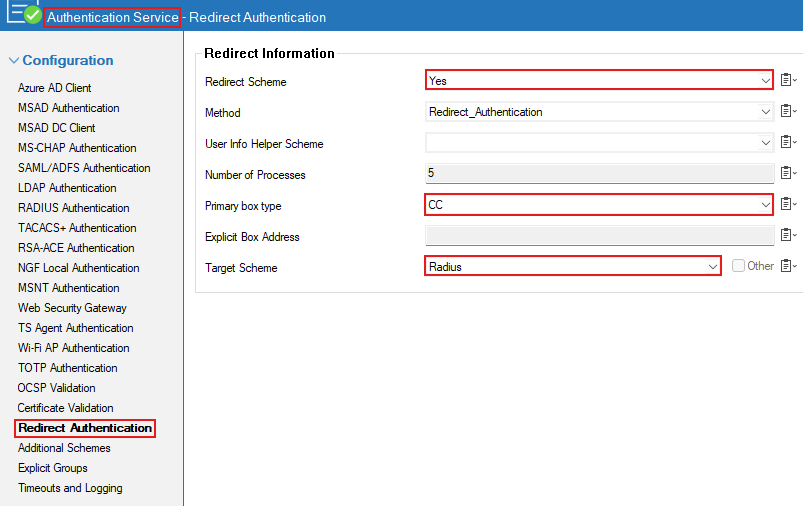

Configuration of the Authentication service#

Click right on the “Authentication Service” —> Copy From Cluster Repository

Choose “ccAuth” and click OK

IF YOU ALREADY HAVE AN MSAD/RADIUS/…SERVICE READ BELOW:

Go to Cluster Repository —> Box —> Advanced Configuration —> Authentication Service —> ccAuth

On the left side select “LDAP Authentication” - right click on the entry with dc=kappapartner….. and select “Copy to clipboard”

Go back to your box (Infrastructure Services —> Authentication Service)

In LDAP Authentication select “Activate Scheme” yes - go to the same entry list - click on the little paste icon on the right and select replace with clipboard
